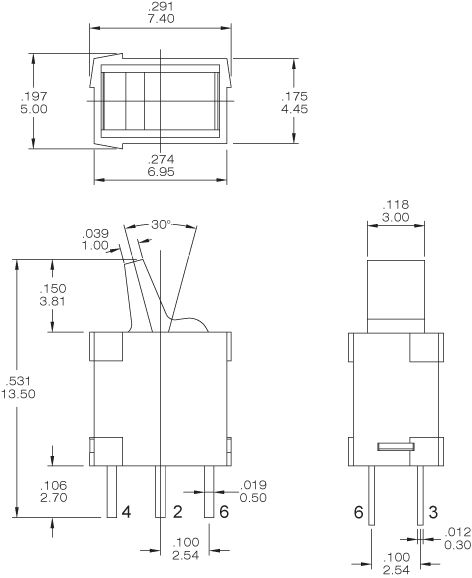

UR-4-C
Sealed Ultraminiature rocker switch with PC thru-hole termination. Sealed structure can avoid any contaminant during soldering and cleaning process. High temperature materials (UL 94V-0). This switch is perfect for Hand-held telecommunications and Small instrumentation.

UR Sealed Ultraminiature Rocker Switches

产品特点
Ultraminiature size, smallest footprint available
Function: On-On
Circuit: SPDT

产品规格
Contact Rating:
max 0.4 VA max @ 28 VDC
Min. 1μA/20 mVDC
Electrical Life: 10,000 make and break cycles at full load
Contact Resistance: 100 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 500 MΩ min.
Dielectric Strength: 250 VAC, 50 Hz for the duration of 1 minute.
Operating Temperature: -30°C to 85°C
产品材质
CASE: nylon 4/6
ACTUATOR: nylon
FRAME: nylon 4/6
TERMINAL: bronze, gold-plated or tin plated
CONTACT: phosphor bronze, silver plated

LOOP SEALING: rubber
