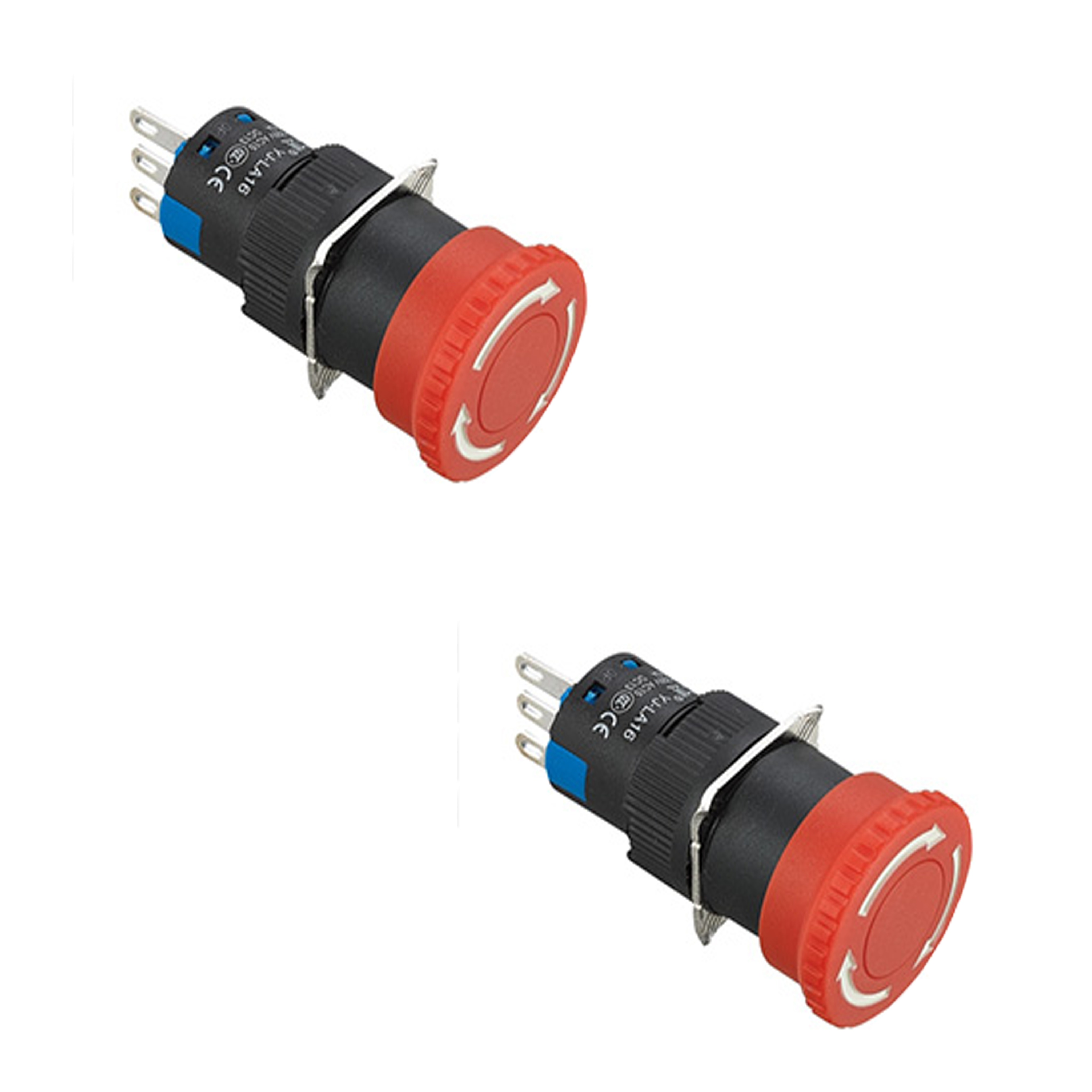

HL-LA16系列急停开关

安装孔径：16mm

头部形状：圆形、方形、矩形

功能：信号灯、复位按钮、自锁按钮、带灯按钮旋钮、钥匙钮、急停钮、蘑菇头按钮

开关触点组合：1NO1NC/2NO2NC/2NC

防护等级：IP40、IP65、IP67

产业应用：工业操纵面板、充电桩、工业控制机器、机器人。

详细参数 / Detailed parameters
Operating Ambient Temperature-25℃~+55℃（freeze-free）
Ambient Humidity45~85% RH
Contact Resistance≤30 mΩ
Insulation Resistance≥100MΩ
Withstand Voltage

(Between the contact and the bead pin）

2,000VAC/60s
Withstand Voltage
(Between terminal）

1,500VAC/60s
Withstand Voltage
(Between different electrode terminals)

2,000VAC/60s
Resistance To Soldering HeatNo more than 3 seconds at 320℃ (or 30W)
Operating StrokeThe button is about 3mm
Mechanical Life（Self-resetting button）≥1,000,000 times
Mechanical Life（Self-locking button, select button）≥500,000 times
Mechanical Life（Key button, emergency stop button）≥300,000 times
Electrical Life≥100,000 times
Vibration Resistance50Hz, amplitude about 1.2mm
Impact Resistance＞10g
wiring
Weld wire diameter：2*0.8mm

Maximum copper wire area：0.75mm²

Wiring insert：2.8*0.5mm

HL-LA16-02ZSB,HL-LA16-02ZSC,HL-LA16-11ZSAF ,HL-LA16-11ZS
