VW1

<产品型号一> <产品型号二> <产品型号三>

VW1 Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1,000,0000 Operations
Service life(electrical)
   Min. 10,000 Operations

RATING
0.1A/3A/6A/10A 125/250VAC ; 0.1A/3A/5A 30VDC

APPLICATION
Industrial equipment
Aautomotive applications
Agricultural machines
Household appliances

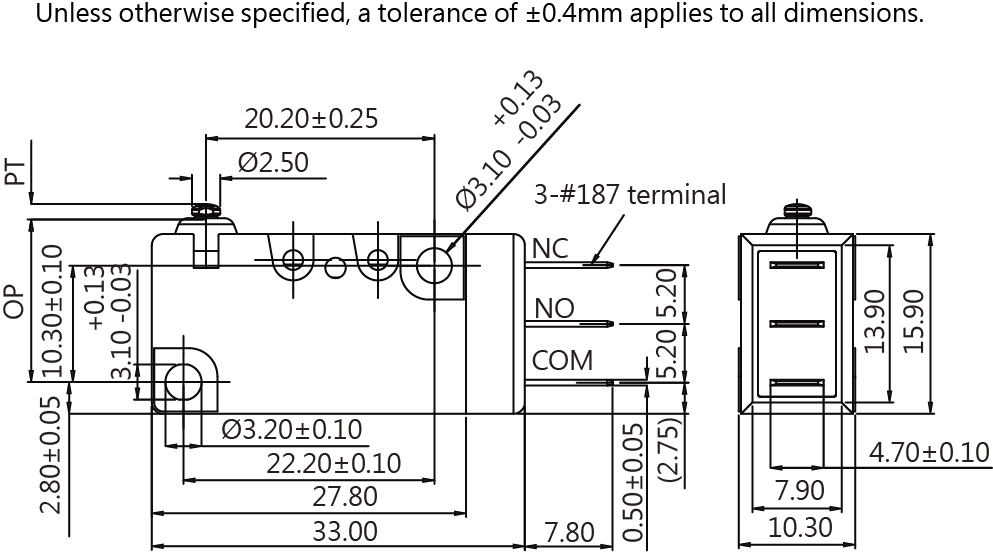

DIMENSIONS

CONTACT CONFIGURATION

OPERATING FORCE

ORDER INFORMATION

TERMINAL TYPES

OPERATING CHARACTERISTICS
