SW1(IP67) Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   min.2,000,000 Operations
Service life(electrical)
   Min.10,000 Operations

RATING
0.1A/6A/10A/12A 125/250VAC ; 0.1A/5A 30VDC

APPLICATION
Drives for beds, tables and roller shutters
Servo drives
Power tools
Recreational equipment
Vacuum cleaners
Small household appliances
Vending machines
Medical devices
HVAC technology
Automotive applications

DIMENSIONS

OPERATING FORCE

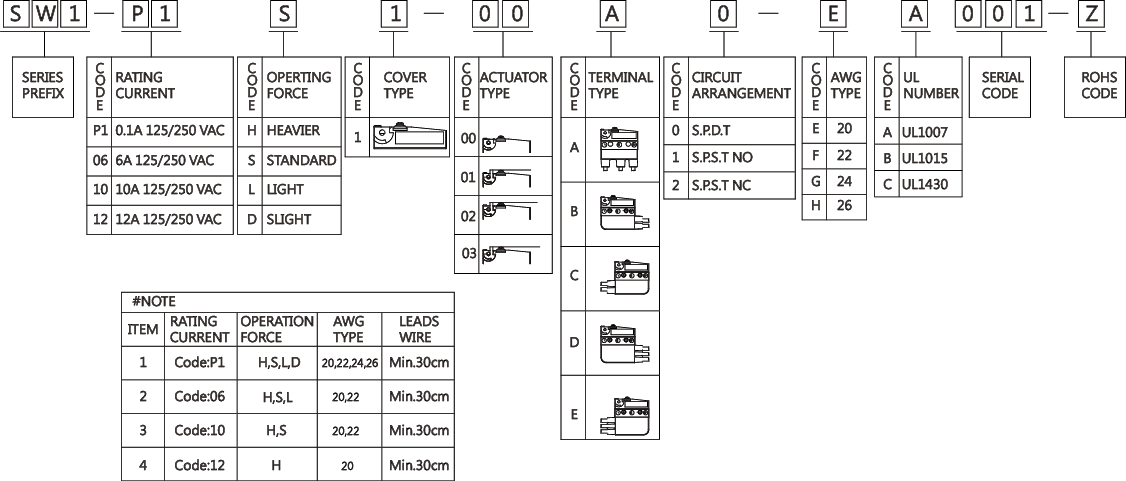

ORDER INFORMATION
