DW2

DW2 Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   3A - 10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1,000,000 Operations
Service life(electrical)
   3A Min.10,000 Operations

RATING
0.1A/3A 125/250VAC;10mA/3A 12VDC

APPLICATION
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.

DIMENSIONS

CONTACT CONFIGURATION

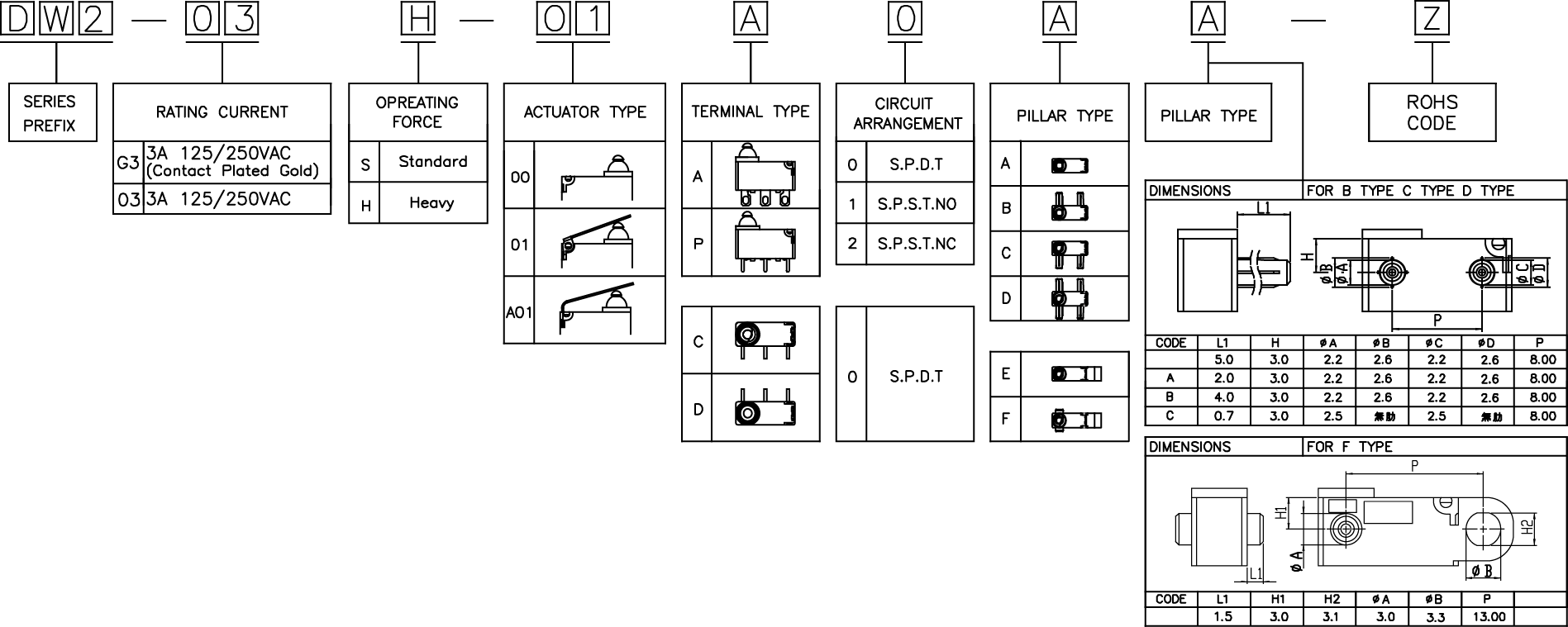

ORDER INFORMATION

TERMINAL TYPES

OPERATING CHARACTERISTICS
