DFW

<产品型号>

DFW Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min.1,000,000 Operations
Service life(electrical)
   Min.10,000 Operations

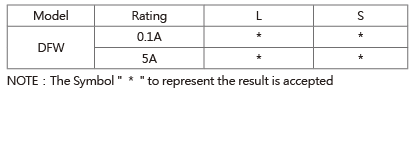

RATING
0.1A/5A 125/250VAC ; 3A 24VDC

APPLICATION
Automotive
Air conditioner
communication
Electric tooth brush
toys

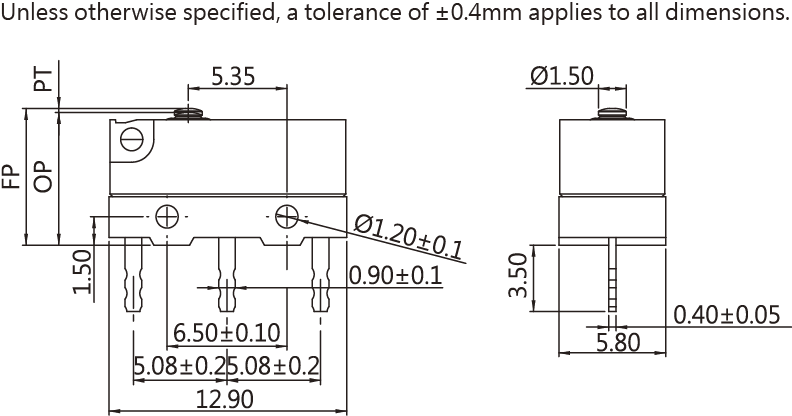

DIMENSIONS

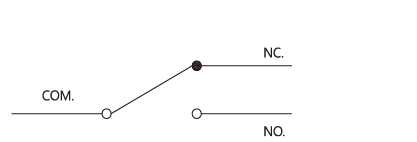

CONTACT CONFIGURATION

OPERATING FORCE

ORDER INFORMATION

TERMINAL TYPES

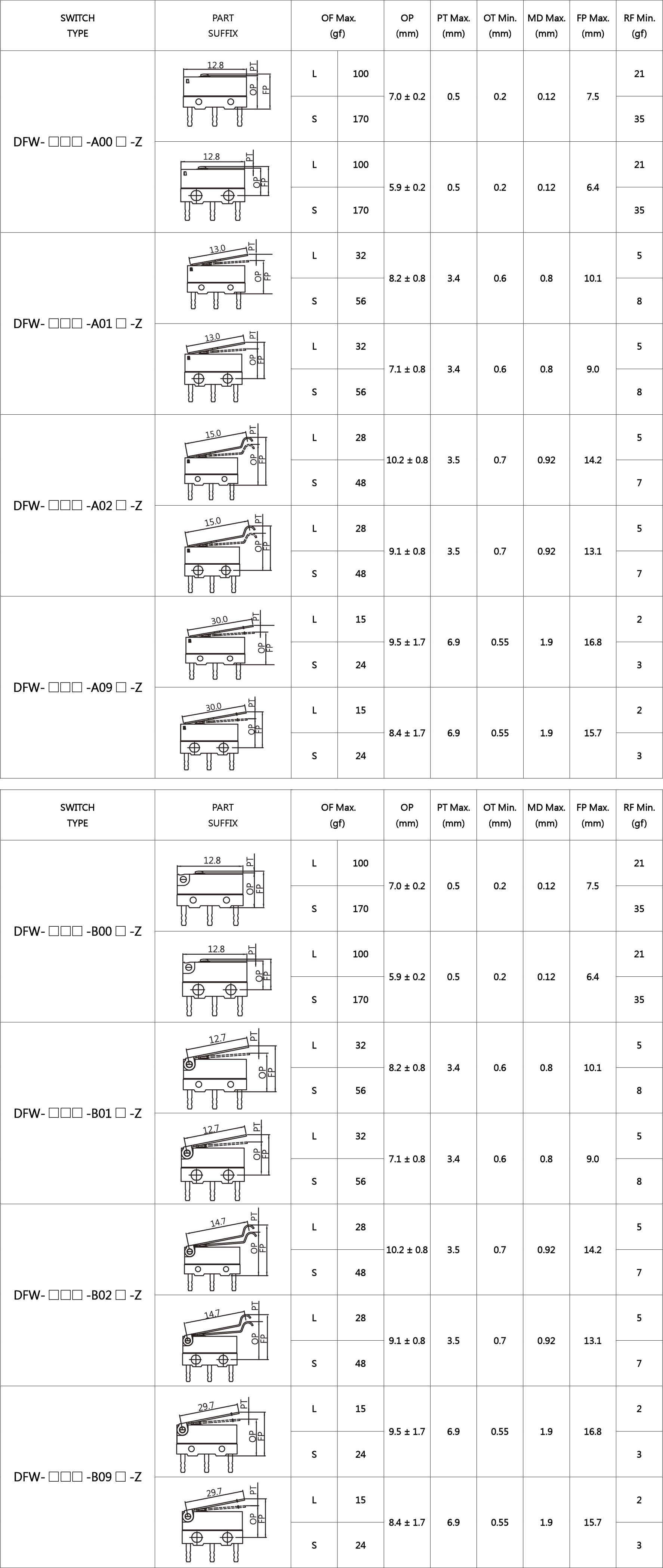

OPERATING CHARACTERISTICS
