DFW(IP67)

<产品型号一> <产品型号二> <产品型号三> <产品型号四>

DFW(IP67) Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1,000,000 Operations
Service life(electrical)
   Min. 10,000 Operations

RATING
0.1A/5A 125/250VAC; 3A 24VDC

APPLICATION
Automotive
Air conditioner
communication
Electric tooth brush
toys

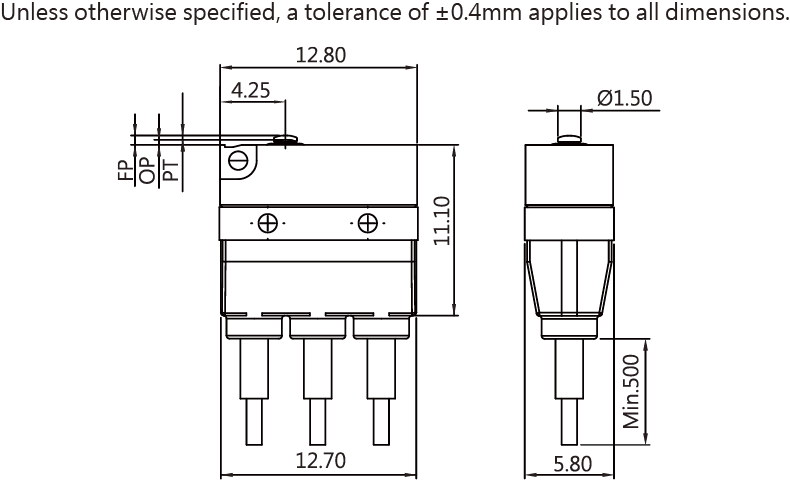

DIMENSIONS

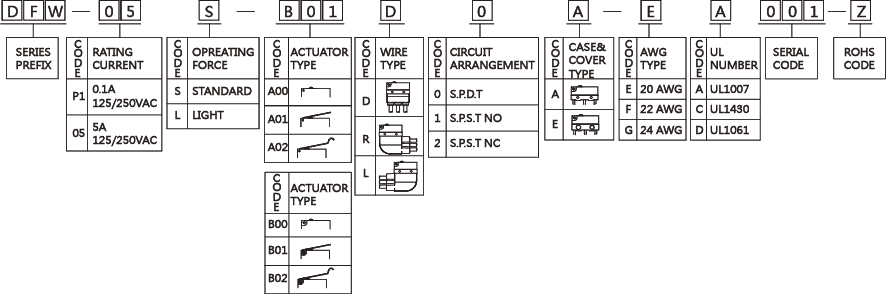

ORDER INFORMATION

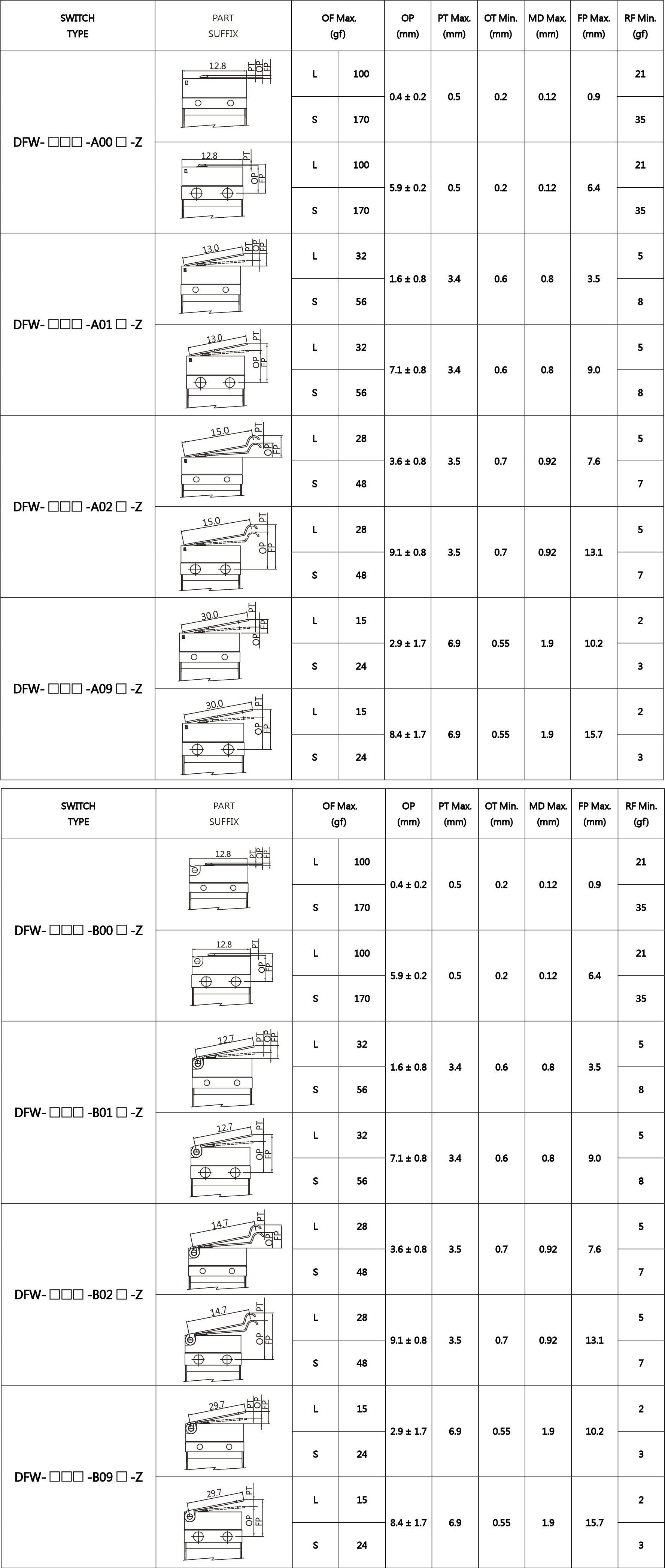

OPERATING CHARACTERISTICS
