B5

B5

详情

B5-P5L-0D-Z B5-P5S-0D-Z B5-P5H-0D-Z B5-P5Q-0D-Z B5-A1L-0D-Z B5-A1S-0D-Z B5-A1H-0D-Z B5-A1Q-0D-Z
B5-P5L-0F-Z B5-P5S-0F-Z B5-P5H-0F-Z B5-P5Q-0F-Z B5-A1L-0F-Z B5-A1S-0F-Z B5-A1H-0F-Z B5-A1Q-0F-Z
B5-P5L-1D-Z B5-P5S-1D-Z B5-P5H-1D-Z B5-P5Q-1D-Z B5-A1L-1D-Z B5-A1S-1D-Z B5-A1H-1D-Z B5-A1Q-1D-Z
B5-P5L-1F-Z B5-P5S-1F-Z B5-P5H-1F-Z B5-P5Q-1F-Z B5-A1L-1F-Z B5-A1S-1F-Z B5-A1H-1F-Z B5-A1Q-1F-Z

B5 Series

SPECIFICATIONS
Operating frequency(electrical):
   20 Operation / mim
Contact resistance:
   500m Ω(max)
Service life(electrical)
   Min. 100,000 Operations


RATING
10mA 5VDC


APPLICATION
PDA,MP3 Player,Mobile Phone


DIMENSIONS

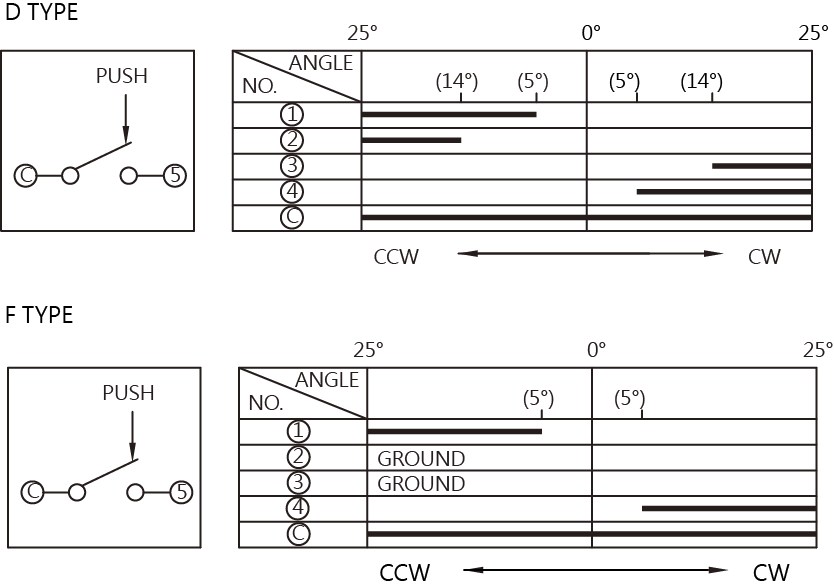

CONTACT CONFIGURATION

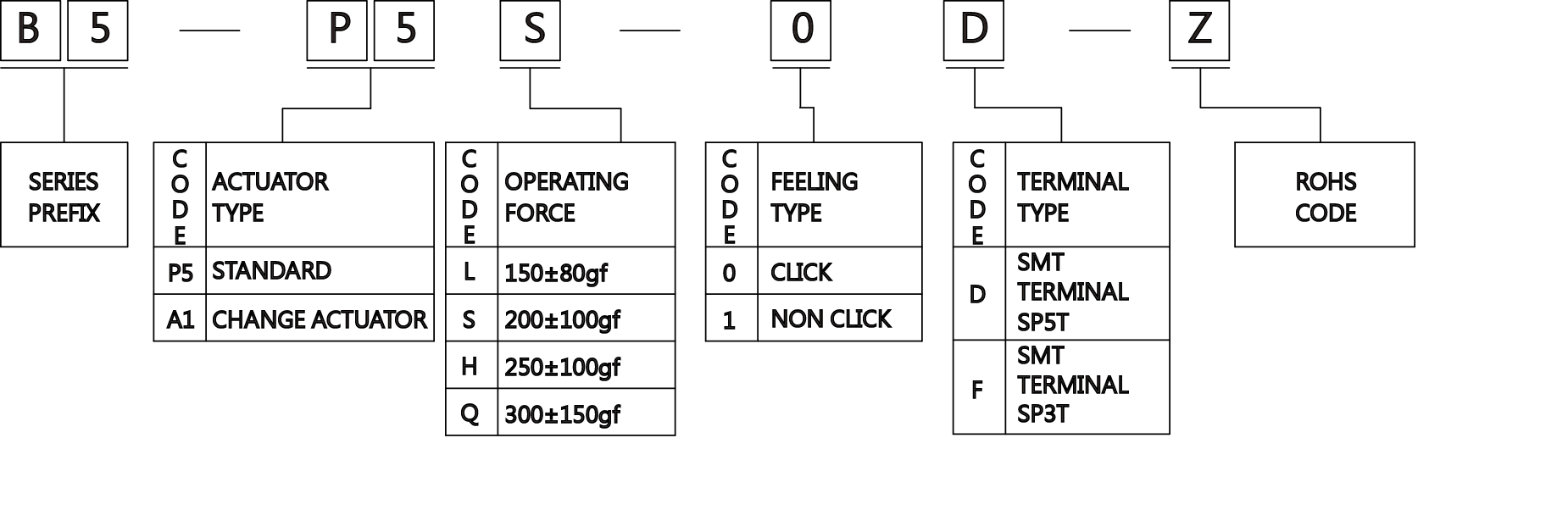

ORDER INFORMATION
