KC-I1B-O1G-Z KC-I1B-O1B-Z KC-I1B-O1A-Z KC-I1G-O1G-Z KC-I1G-O1B-Z
KC-I1G-O1A-Z KC-I1A-O1G-Z KC-I1A-O1B-Z KC-I1A-O1A-Z

KC Series

SPECIFICATIONS
Operating force:
   Push - Max.300 gf Operation / mim
Operating frequency(electrical):
   Push-120 Operation / mim
Contact resistance:
   300m Ω(max)
Service life(electrical)
   Push-Min.1,000,000 Operations


RATING
1mA 10VDC


APPLICATION
Remote control,

Tablet,

Keyboard,

Audio ,

Mp3,

NB,

Mobile phone

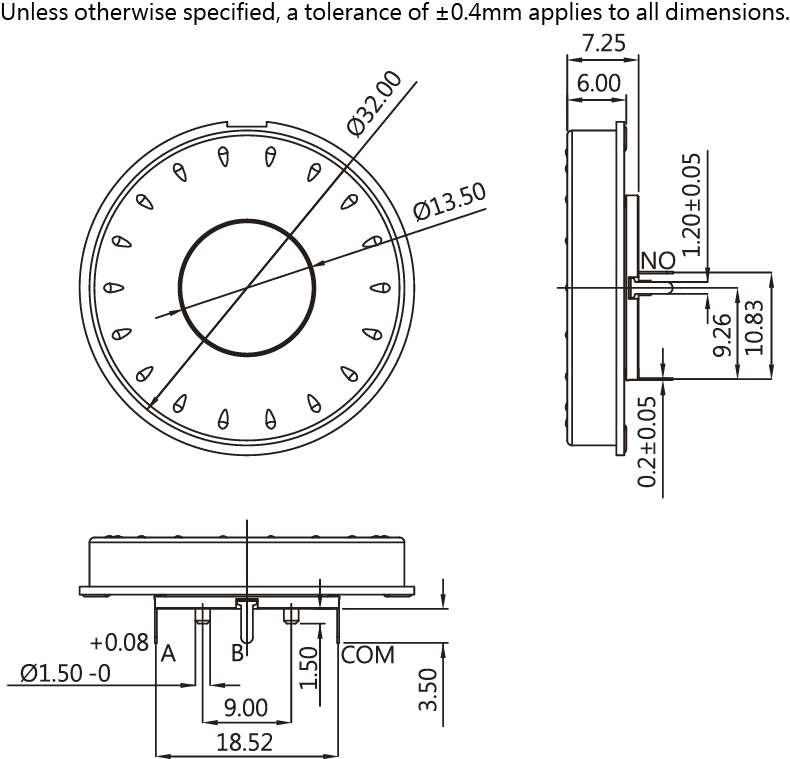

DIMENSIONS


CONTACT CONFIGURATION

ORDER INFORMATION
