RE

RE

详情

RE06S-A2BA-0-Z RE06S-A2BB-1-Z RE06S-D2BA-2-Z RE06S-D2BB-3-Z RE12S-A2BA-4-Z RE12S-A2BB-5-Z RE12S-D2BA-6-Z
RE06S-A2BA-1-Z RE06S-A2BB-2-Z RE06S-D2BA-3-Z RE06S-D2BB-4-Z RE12S-A2BA-5-Z RE12S-A2BB-6-Z RE12S-D2BB-0-Z
RE06S-A2BA-2-Z RE06S-A2BB-3-Z RE06S-D2BA-4-Z RE06S-D2BB-5-Z RE12S-A2BA-6-Z RE12S-D2BA-0-Z RE12S-D2BB-1-Z
RE06S-A2BA-3-Z RE06S-A2BB-4-Z RE06S-D2BA-5-Z RE06S-D2BB-6-Z RE12S-A2BB-0-Z RE12S-D2BA-1-Z RE12S-D2BB-2-Z
RE06S-A2BA-4-Z RE06S-A2BB-5-Z RE06S-D2BA-6-Z RE12S-A2BA-0-Z RE12S-A2BB-1-Z RE12S-D2BA-2-Z RE12S-D2BB-3-Z
RE06S-A2BA-5-Z RE06S-A2BB-6-Z RE06S-D2BB-0-Z RE12S-A2BA-1-Z RE12S-A2BB-2-Z RE12S-D2BA-3-Z RE12S-D2BB-4-Z
RE06S-A2BA-6-Z RE06S-D2BA-0-Z RE06S-D2BB-1-Z RE12S-A2BA-2-Z RE12S-A2BB-3-Z RE12S-D2BA-4-Z RE12S-D2BB-5-Z
RE06S-A2BB-0-Z RE06S-D2BA-1-Z RE06S-D2BB-2-Z RE12S-A2BA-3-Z RE12S-A2BB-4-Z RE12S-D2BA-5-Z RE12S-D2BB-6-Z

RE Series

SPECIFICATIONS
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   50m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(electrical)
   Min. 10,000 Operations


RATING
6A 125VAC, 12A 125/250VAC


APPLICATION
Juice Maker,

Blender,

Food Processor

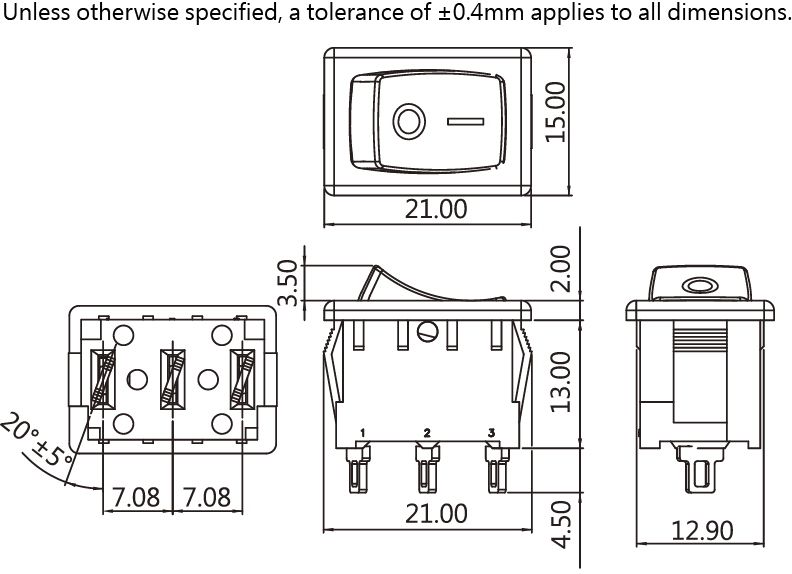

DIMENSIONS

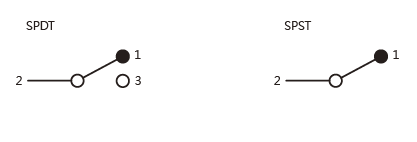

CONTACT CONFIGURATION

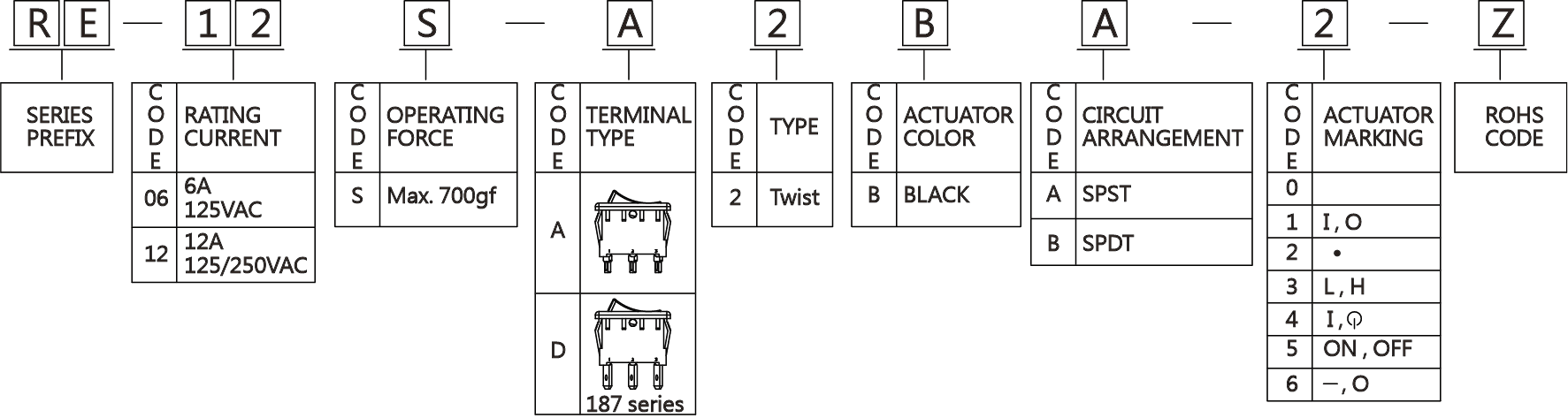

ORDER INFORMATION

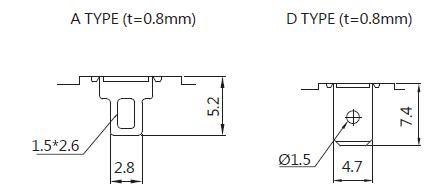

TERMINAL TYPES
