FT-15S-GD-S-Z

FT-15S-GD-H-Z

FT-15S-BD-S-Z

FT-15S-BD-H-Z

FT Series

SPECIFICATIONS
Operating force:
   2~5lb(907~2268gf) Operation / mim
Operating frequency(mechanical):
   30 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 24,000 Operations
Service life(electrical)
   Min. 6,000 Operations

RATING
15.1A 1/2HP 125/250/277VAC

APPLICATION
Refrigerator,Self cleaning filter,Washing machine

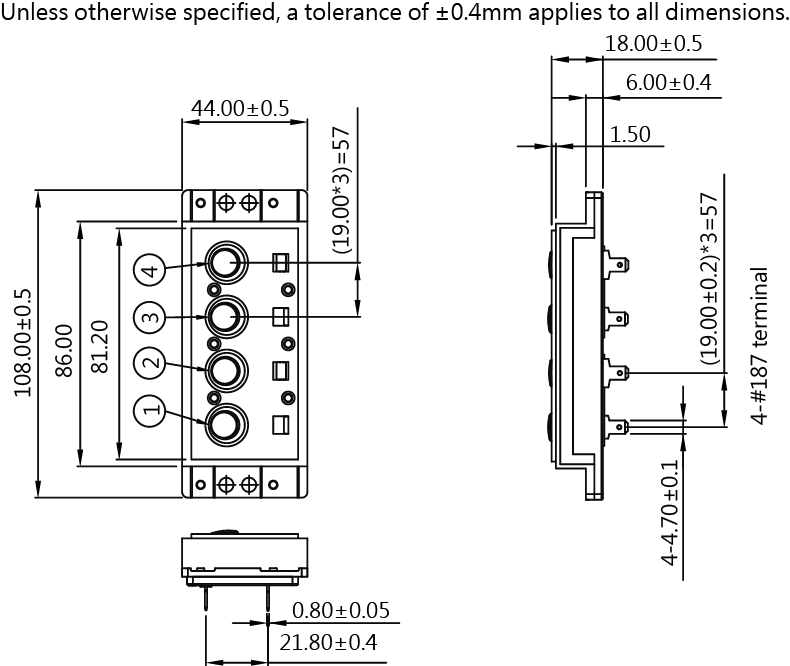

DIMENSIONS

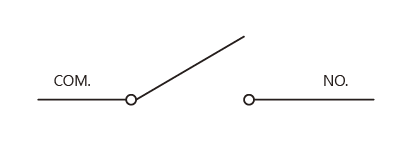

CONTACT CONFIGURATION

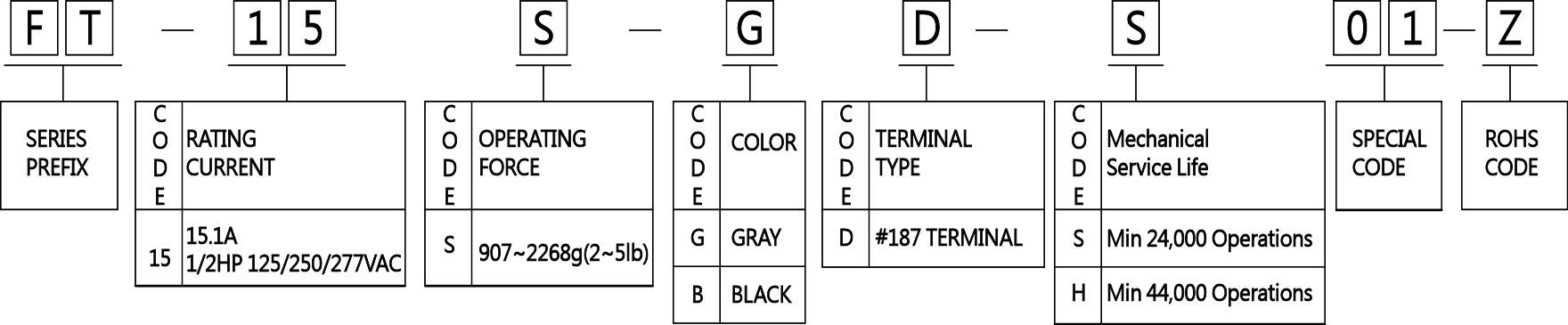

ORDER INFORMATION

FT
