V3(3)

<产品型号>

V3 Series (Gap<3mm)

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   30m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 5,000,000 Operations
Service life(electrical)
   Min. 10,000 Operations

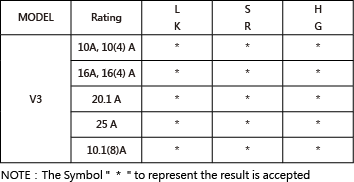

RATING
10.1A/16A/20.1A/25A 125/250VAC

APPLICATION
Joystick,

TV Game,

Time Recorder,

Air Conditioner,

Food Processor,

Juice Maker,

Alarm,

Mixer,

Shredder Machine,

Power Tool

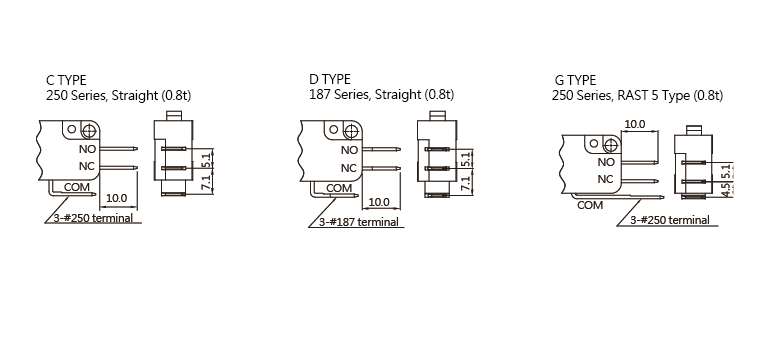

DIMENSIONS
