<产品型号>

SM Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 10,000,000 Operations
Service life(electrical)
   5A-Min. 10,000 Operations

RATING
0.1A/5A 125/250VAC ; 0.1A/5A 30VDC

APPLICATION
Telephone
Air Conditioner
Computer
Humidifier
Alarm
Time Recorder
Mixer
Chopper
Solder Gun
Neon Phone
Fax Machine
Joystick
Water Pump
Gas Detector
Pencil Sharpener
Money Sorter
Food Processor
Electric Knife
Toy Car
Juicer
Electric Steak Pan

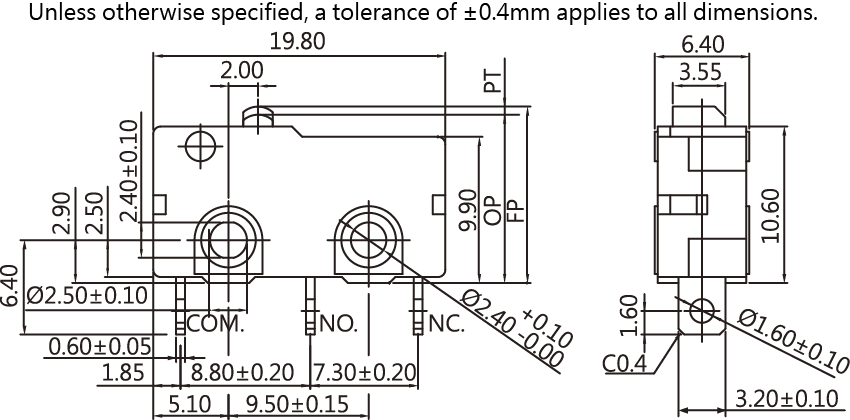

DIMENSIONS

CONTACT CONFIGURATION

OPERATING FORCE

ORDER INFORMATION

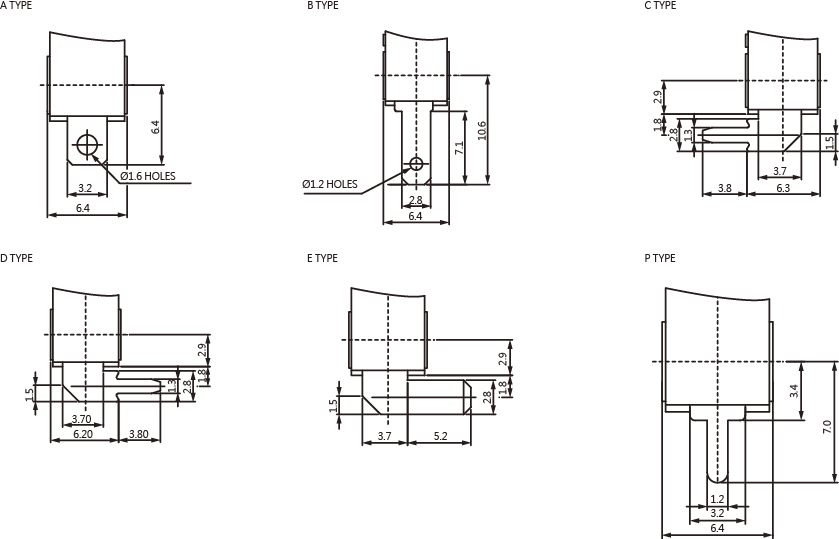

TERMINAL TYPES

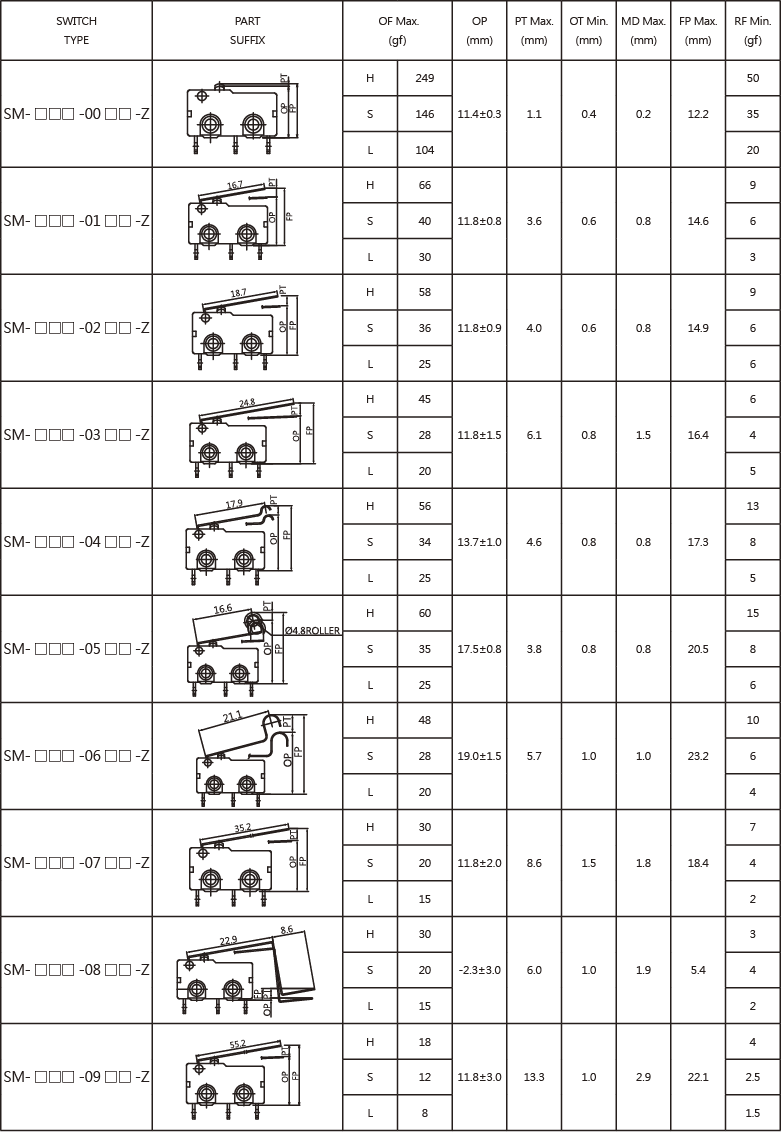

OPERATING CHARACTERISTICS

SM
