DF3

<产品型号一> <产品型号二> <产品型号三>

DF3 Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min.5,000,000 Operations
Service life(electrical)
   Min.10,000 Operations

RATING
3A/5A 125/250VAC ; 3A 24VDC

APPLICATION
Mouses,Joysticks,Small home appliances,Central heating control

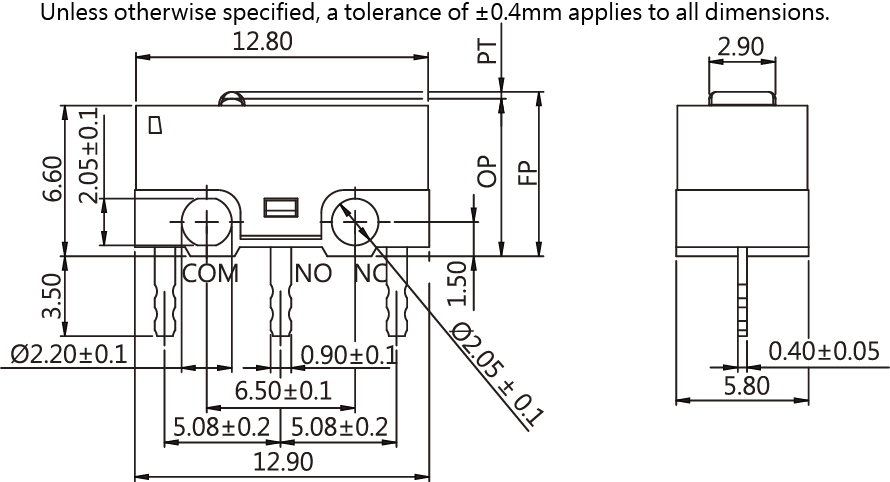

DIMENSIONS

CONTACT CONFIGURATION

OPERATING FORCE

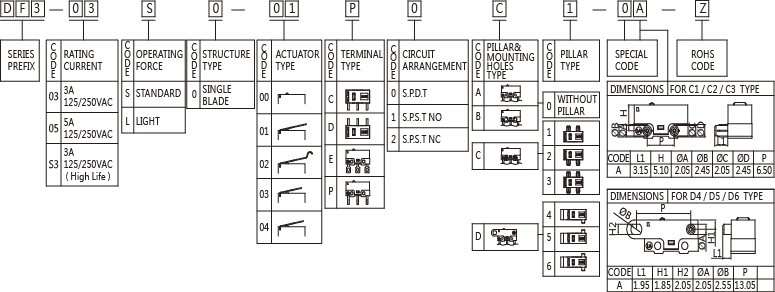

ORDER INFORMATION

TERMINAL TYPES

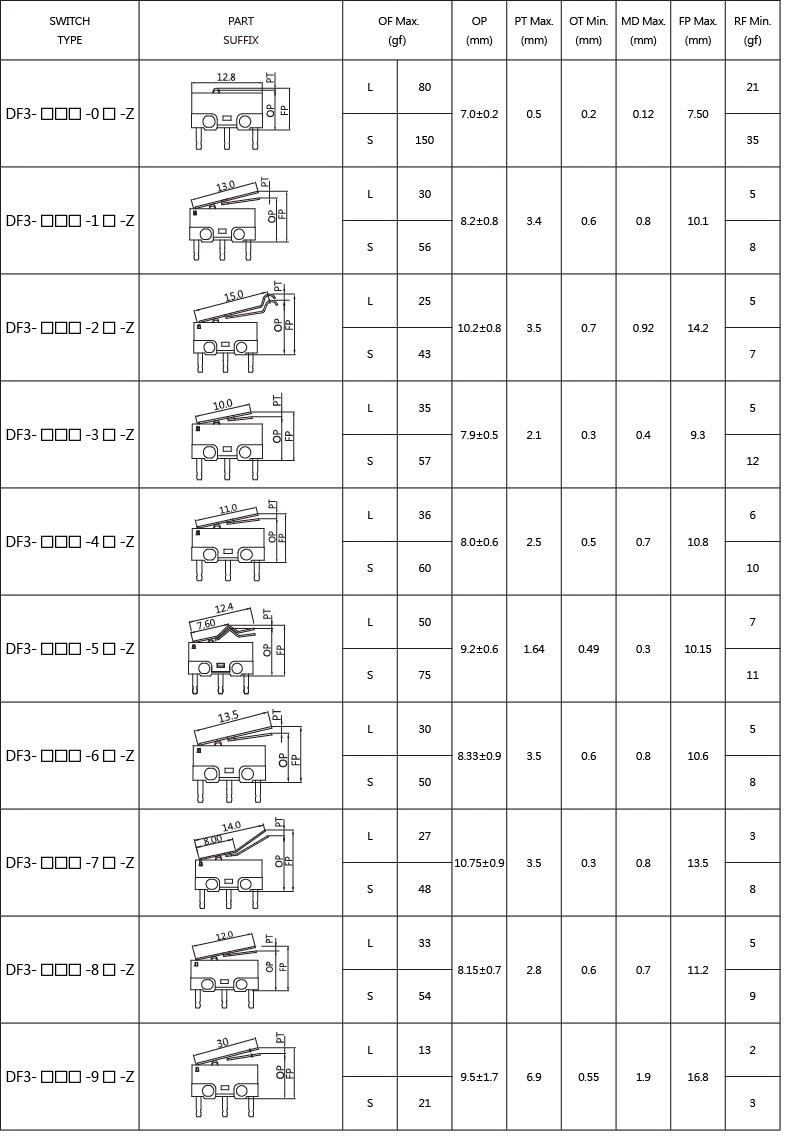

OPERATING CHARACTERISTICS
