DF-M

<产品型号>

DF-M Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1,000,000 Operations
Service life(electrical)
   1A/3A-Min.10,000 Operations

RATING
0.1A/1A/3A 125VAC; 3A 5VDC/12VDC

APPLICATION
‧ Computer mouse
‧ Joysticks
‧ Charger unit for mobile phone
‧ Detection of key position for automobiles
‧ Small home appliances
‧ Central heating control
‧ Electronic Door Locks
‧ Smart Meter

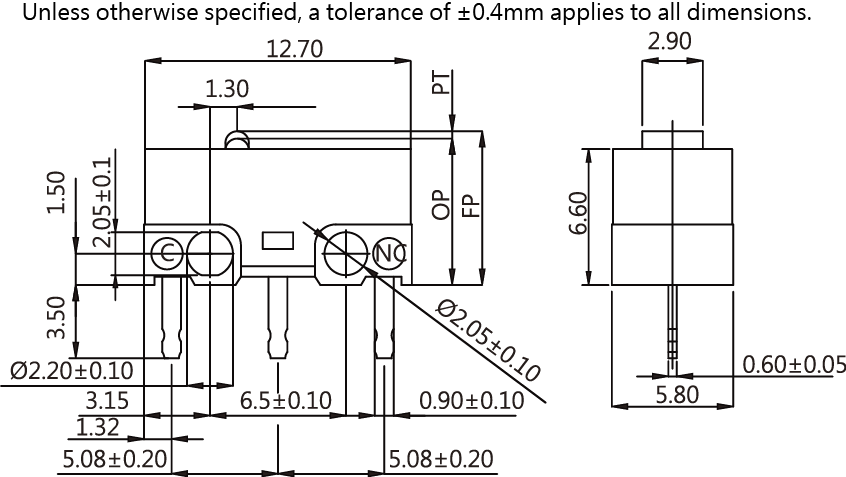

DIMENSIONS

CONTACT CONFIGURATION

OPERATING FORCE

ORDER INFORMATION

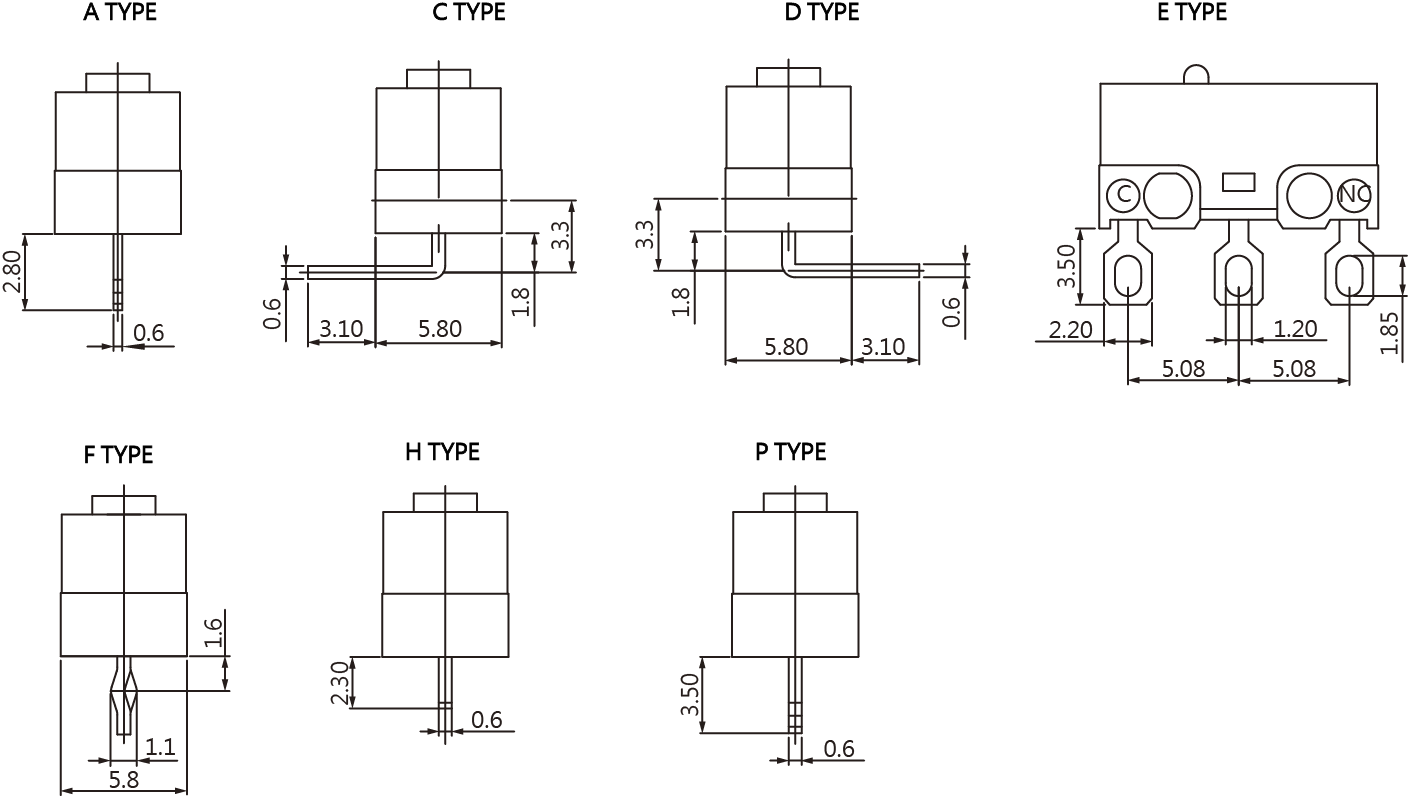

TERMINAL TYPES

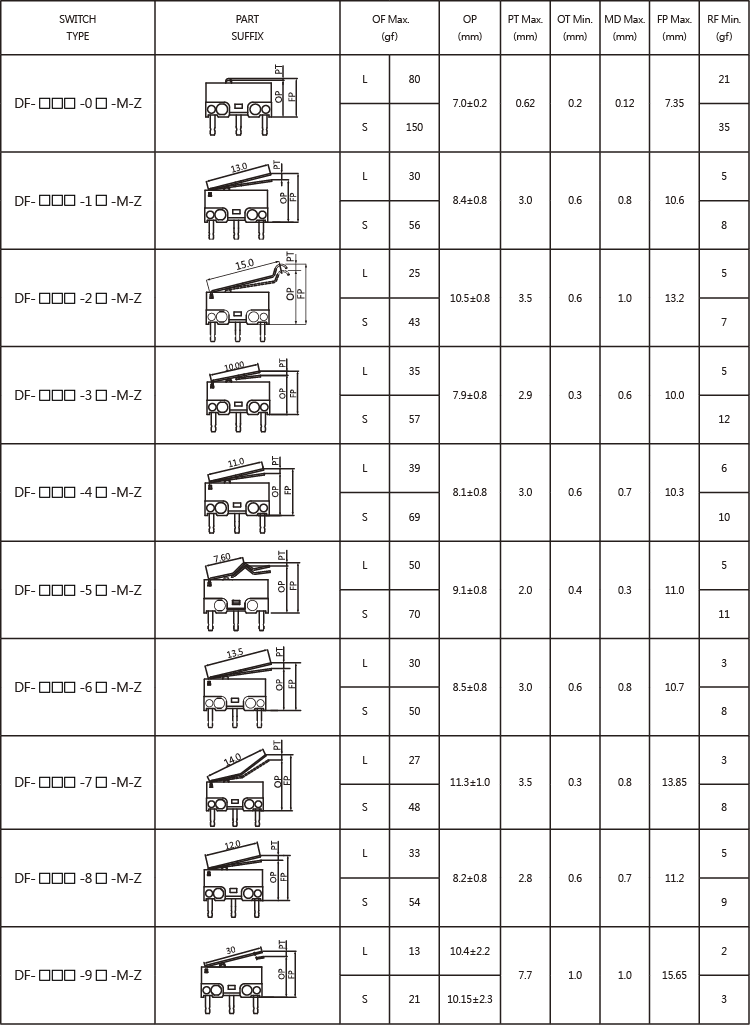

OPERATING CHARACTERISTICS
