HK01

HK01-11C-Z

HK01-11C-G-Z

HK01-22C-Z

HK01-22C-G-Z

HK01-33C-Z

HK01-33C-G-Z

HK01 Series

SPECIFICATIONS
Operating force:
   Max.110gf at point P Operation / mim
Operating frequency(electrical):
   30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(electrical)
   Min. 500,000 Operations

RATING
0.1A 48VDC

APPLICATION
Various telephone set,

telephone-related

equipment and

other communication

systems using

telephone circuit

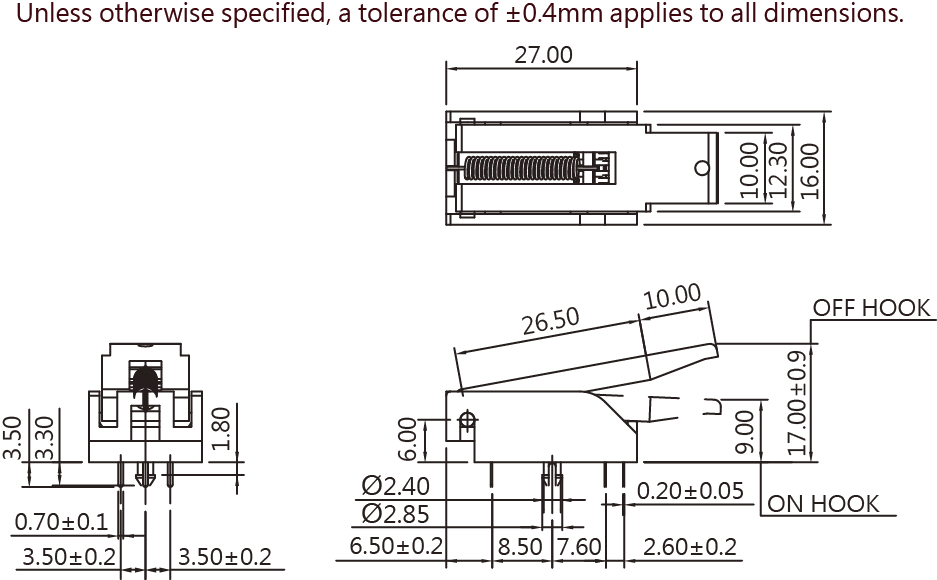

DIMENSIONS

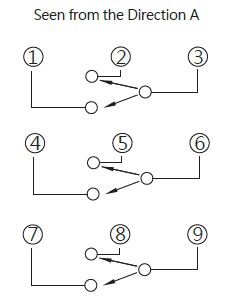

CONTACT CONFIGURATION

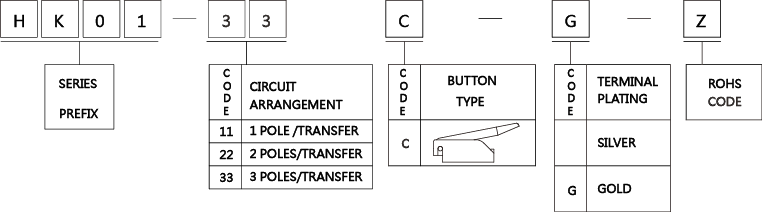

ORDER INFORMATION

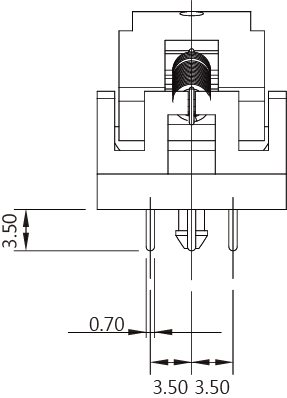

TERMINAL TYPES
