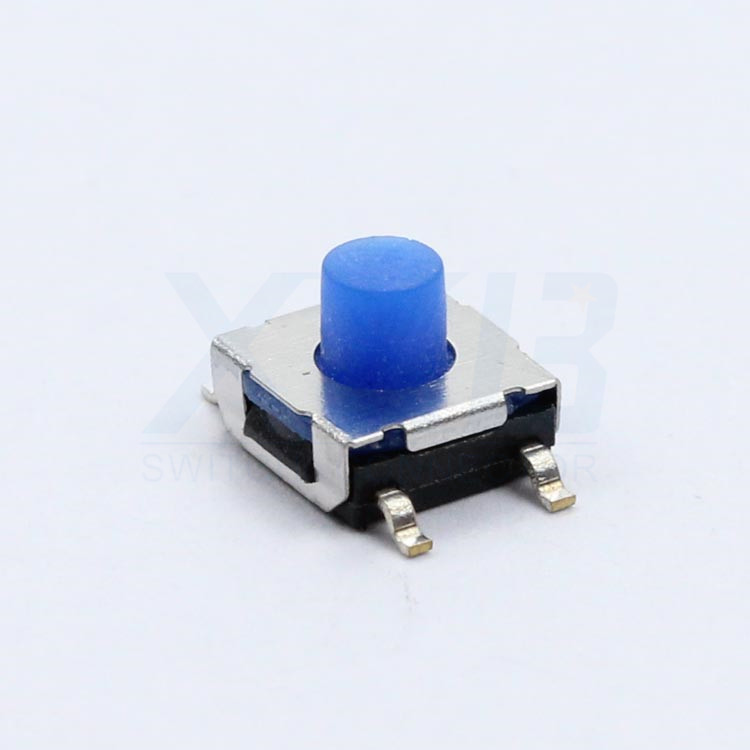

TS-1158B-X-X-X|6.5*6.4*2.5mm

TACT SWITCH：TS-1158B-X-X-X

TS-1158B-B-A-BL

TS-1158B-B-A-W

TS-1158B-B-B-BL

TS-1158B-B-B-W

TS-1158B-B-C-BL

TS-1158B-B-C-W

TS-1158B-B-D-BL

TS-1158B-B-D-W

TS-1158B-C-A-BL

TS-1158B-C-A-W

TS-1158B-C-B-BL

TS-1158B-C-B-W

TS-1158B-C-C-BL

TS-1158B-C-C-W

TS-1158B-C-D-BL

TS-1158B-C-D-W

TS-1158B-E-A-BL

TS-1158B-E-A-W

TS-1158B-E-B-BL

TS-1158B-E-B-W

TS-1158B-E-C-BL

TS-1158B-E-C-W

TS-1158B-E-D-BL

TS-1158B-E-D-W


产品型号：TS-1158B-X-X-X所属类别：轻触开关防水级别：防水行程种类：0.25±0.05mm外形尺寸：W6.5XD6.4XH安装方式：贴片型支撑架：无带操作方式：立式垂直操作感觉：敏感离安装面高度 (mm)：2.5

1.额定负荷 rated load: DC 12V 50mA
2.接触电阻 contact resistance: ≤100mΩ
3.绝缘阻抗 insulation resistance: ≥100mΩ DC250V
4.使用温度 nsulation resistance : －25℃＋80℃
5.使用湿度 Use the humidity: ≤85%RH
6.保存温度范围 Storage temperature range：-40°C～+85°C (单件singleton)
                                                                          -20°C～+60°C (带状包装Strip packing)
