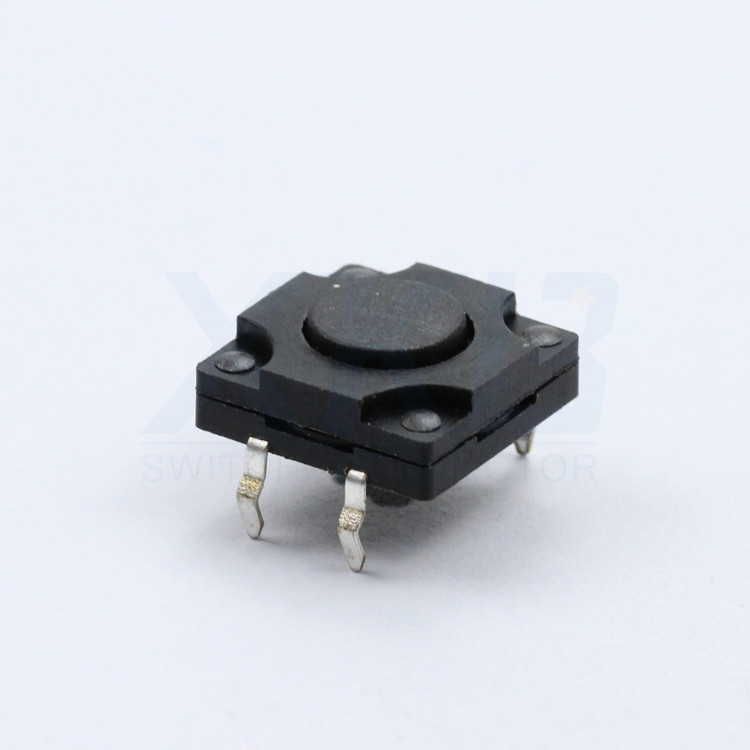

TC-FS1212D-X-X|12*12*5mm

TACT SWITCH:TC-FS1212D-X-X

TC-FS1212D-A-E

TC-FS1212D-A-F

TC-FS1212D-A-G

TC-FS1212D-A-H

TC-FS1212D-A-I

TC-FS1212D-A-J

TC-FS1212D-A-K

TC-FS1212D-A-L

TC-FS1212D-A-M

TC-FS1212D-A-N

TC-FS1212D-A-O

TC-FS1212D-A-P

TC-FS1212D-A-Q

TC-FS1212D-A-R

TC-FS1212D-A-S

TC-FS1212D-A-T

TC-FS1212D-A-U

TC-FS1212D-A-V

TC-FS1212D-A-W

TC-FS1212D-A-X

TC-FS1212D-A-Y

TC-FS1212D-A-Z

TC-FS1212D-A-18

TC-FS1212D-A-19

TC-FS1212D-B-E

TC-FS1212D-B-F

TC-FS1212D-B-G

TC-FS1212D-B-H

TC-FS1212D-B-I

TC-FS1212D-B-J

TC-FS1212D-B-K

TC-FS1212D-B-L

TC-FS1212D-B-M

TC-FS1212D-B-N

TC-FS1212D-B-O

TC-FS1212D-B-P

TC-FS1212D-B-Q

TC-FS1212D-B-R

TC-FS1212D-B-S

TC-FS1212D-B-T

TC-FS1212D-B-U

TC-FS1212D-B-V

TC-FS1212D-B-W

TC-FS1212D-B-X

TC-FS1212D-B-Y

TC-FS1212D-B-Z

TC-FS1212D-B-18

TC-FS1212D-B-19

TC-FS1212D-C-E

TC-FS1212D-C-F

TC-FS1212D-C-G

TC-FS1212D-C-H

TC-FS1212D-C-I

TC-FS1212D-C-J

TC-FS1212D-C-K

TC-FS1212D-C-L

TC-FS1212D-C-M

TC-FS1212D-C-N

TC-FS1212D-C-O

TC-FS1212D-C-P

TC-FS1212D-C-Q

TC-FS1212D-C-R

TC-FS1212D-C-S

TC-FS1212D-C-T

TC-FS1212D-C-U

TC-FS1212D-C-V

TC-FS1212D-C-W

TC-FS1212D-C-X

TC-FS1212D-C-Y

TC-FS1212D-C-Z

TC-FS1212D-C-18

TC-FS1212D-C-19


产品型号：TC-FS1212D-X-X所属类别：轻触开关防水级别：防水行程种类：0.35±0.1mm外形尺寸：W12xD12xH安装方式：插脚型支撑架：无带操作方式：立式垂直操作感觉：敏感离安装面高度 (mm)：5.0

1.额定负荷 rated load: DC 12V 50mA
2.接触电阻 contact resistance: ≤100mΩ
3.绝缘阻抗 insulation resistance: ≥100mΩ DC250V
4.使用温度 nsulation resistance : －25℃＋80℃
5.使用湿度 Use the humidity: ≤85%RH
6.保存温度范围 Storage temperature range：-40°C～+85°C (单件singleton)
                                                                          -20°C～+60°C (带状包装Strip packing)
