WTM-10-C

WTM-10-C

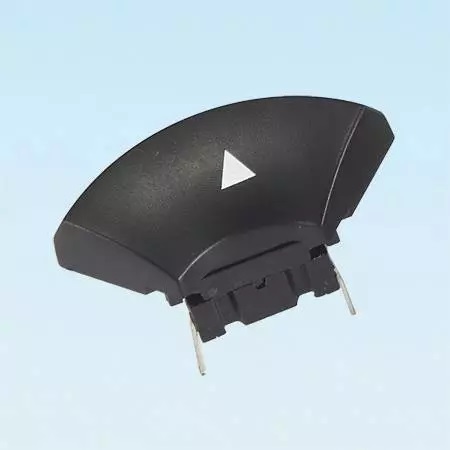

Washable type Switch used in Navigation

WTM Washable Tact Switches

产品特点
Various options of cap, color and pattern

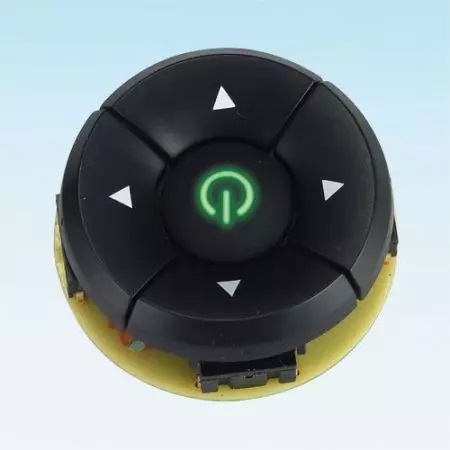

Can be combined into a 5-ways Navigation Switch
Carry IP67 protection degree

产品规格
Rating: 50mA, 24VDC
Electrical Life: 1,000,000 cycles
Contact Resistance: 50mΩ max. (initial)
Insulation Resistance: 10MΩ min. 100VDC
Dielectric Strength: 250VAC/1 min.
Operating Temperature: -40°C to +160°C
产品材质
HOUSE：Nylon
ACTUATOR：Nylon
COVER：Nylon
SEALING+SPRING：Silicon
CONTACT：Stainless steel silver plating

TERMINAL：Copper alloy
