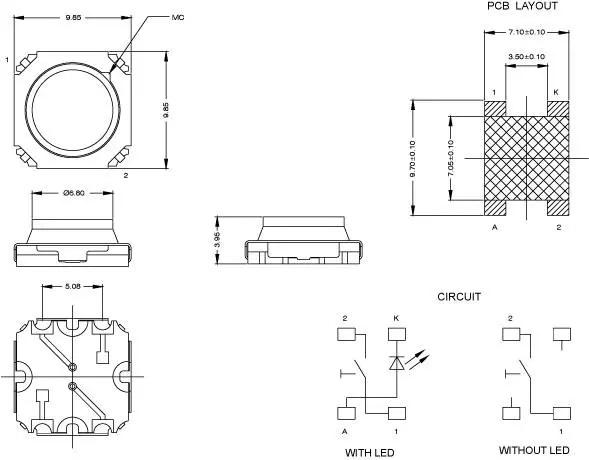

TQ2
TQ2 Illuminated and Washable Tact Switches
产品特点
For automotive interior light control.
Switch can be with different LED colors.
产品特点
For automotive interior light control.
Switch can be with different LED colors.
详情
产品规格
Contact Rating: DC 28V, 50mA
Operation Life: 500,000 cycles
Contact Resistance: 100mΩ max. (initial)
Insulation Resistance: 500MΩ min. 250VDC
Dielectric Strength: 500VAC for 1 min.
Operating Temperature: -40°C to +95°C
产品材质
PCB: FR4
BUTTON: Silicon
Contact Rating: DC 28V, 50mA
Operation Life: 500,000 cycles
Contact Resistance: 100mΩ max. (initial)
Insulation Resistance: 500MΩ min. 250VDC
Dielectric Strength: 500VAC for 1 min.
Operating Temperature: -40°C to +95°C
产品材质
PCB: FR4
BUTTON: Silicon
CONTACT: Stainless steel
