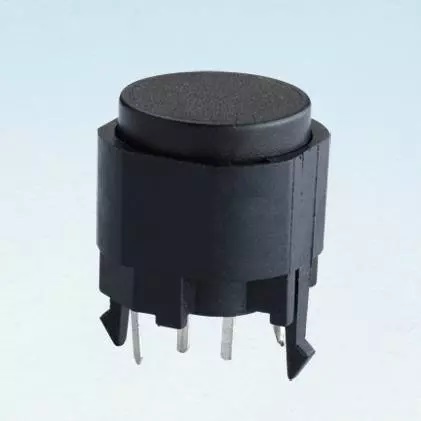

KS
High performance key switch designed for low-level switching. Double stroke version available. Excellent tactile feel. The materials meet medical industry standards. This switch is perfect for Medical device.
KS Key Switches
产品特点
High reliability and long life
KS Key Switches
产品特点
High reliability and long life
详情
产品规格
Contact Rating: 10mA~100mA, 2V DC~30V DC
Operation Life: 50,000 cycles
Contact Resistance: 50mΩ max. initial, 250mΩ max. initial
Insulation Resistance: 100 MΩ min. 500VDC
Operating Temperature: -40°C to 85°C
产品材质
BASE: Nylon
TERMINAL: Copper alloy
ROLLER: POM
Contact Rating: 10mA~100mA, 2V DC~30V DC
Operation Life: 50,000 cycles
Contact Resistance: 50mΩ max. initial, 250mΩ max. initial
Insulation Resistance: 100 MΩ min. 500VDC
Operating Temperature: -40°C to 85°C
产品材质
BASE: Nylon
TERMINAL: Copper alloy
ROLLER: POM
CASE: POM
