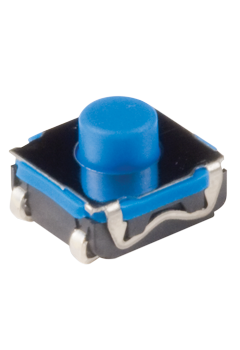

KSC7系列密封 SMT 6.2*6.2*4.3mm轻触开关
KSC7 系列密封 SMT 轻触开关有多种安装和驱动配置, 提供了更大的灵活性, 并能针对特定应用的需求进行配置。C&K 的 KSC7 是符合 IP67 标准的, 软起动器 4.3mm 高的开关, 其长寿命和耐用性非常适合工业、消费类电子、汽车和远程应用。
特点
-40°C to 85°C (125°C for gold version)
特点
IP67
6.2*6.2*4.3mm
SPST
between 300,000 and 5,000,000 cycles depending on model-40°C to 85°C (125°C for gold version)
详情
| 序号 | 型号 | 额定值 | 操作力 | 封装 | 寿命 | 包装形式 | 最小包装 | 工作温度 |
| 1 | KSC701JLFS | 32VDC/50mA | 1.6N | J-SMD | 5000000c | 卷带 | 1000pcs | -40-85°C |
| 2 | KSC701JLFG | 32VDC/50mA | 1.6N | J-SMD | 5000000c | 卷带 | 1000pcs | -40-85°C |
| 3 | KSC701GLFS | 32VDC/50mA | 1.6N | SMD | 5000000c | 卷带 | 1000pcs | -40-85°C |
| 4 | KSC701GLFG | 32VDC/50mA | 1.6N | SMD | 5000000c | 卷带 | 1000pcs | -40-85°C |
| 5 | KSC703JLFS | 32VDC/10mA | 1.6N | J-SMD | 5000000c | 卷带 | 1000pcs | -40-125°C |
| 6 | KSC703JLFG | 32VDC/10mA | 1.6N | J-SMD | 5000000c | 卷带 | 1000pcs | -40-125°C |
| 7 | KSC703GLFS | 32VDC/10mA | 1.6N | SMD | 5000000c | 卷带 | 1000pcs | -40-125°C |
| 8 | KSC703GLFG | 32VDC/10mA | 1.6N | SMD | 5000000c | 卷带 | 1000pcs | -40-125°C |
| 9 | KSC721JLFS | 32VDC/50mA | 2.25N | J-SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 10 | KSC721JLFG | 32VDC/50mA | 2.25N | J-SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 11 | KSC721GLFS | 32VDC/50mA | 2.25N | SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 12 | KSC721GLFG | 32VDC/50mA | 2.25N | SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 13 | KSC723JLFS | 32VDC/10mA | 2.25N | J-SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 14 | KSC723JLFG | 32VDC/10mA | 2.25N | J-SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 15 | KSC723GLFS | 32VDC/10mA | 2.25N | SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 16 | KSC723GLFG | 32VDC/10mA | 2.25N | SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 17 | KSC741JLFS | 32VDC/50mA | 3.9N | J-SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 18 | KSC741JLFG | 32VDC/50mA | 3.9N | J-SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 19 | KSC741GLFS | 32VDC/50mA | 3.9N | SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 20 | KSC741GLFG | 32VDC/50mA | 3.9N | SMD | 300000c | 卷带 | 1000pcs | -40-85°C |
| 21 | KSC743JLFS | 32VDC/10mA | 3.9N | J-SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 22 | KSC743JLFG | 32VDC/10mA | 3.9N | J-SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 23 | KSC743GLFS | 32VDC/10mA | 3.9N | SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
| 24 | KSC743GLFG | 32VDC/10mA | 3.9N | SMD | 300000c | 卷带 | 1000pcs | -40-125°C |
- C&K_ksc7.pdf 66 MD5
