TS-1189

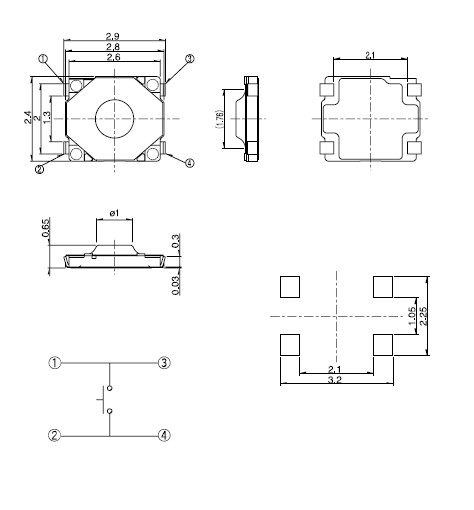

TS-1189 Series Low Profile SMT Tactile Switch

·2.9mm x 2.7mm tactile switch
· Ultra low profile with 0.65mm height
·160 ± 50gram force options
·Surface mount design
SPECIFICATIONS
ELECTRICAL LIFE: 500,000 Cycles - 160gf
CONTACT RATING: 50mA
CONTACT RESISTANCE: 200mΩ Initial Max.
INSULATION RESISTANCE: 50MΩ Min. at 100VDC
DIELECTRIC STRENGTH: 250VAC
FORCE:  160gf ± 50gf;

TRAVEL: 0.1mm
OPERATING TEMPERATURE: -20°C to 70°C
STORAGE TEMPERATURE: -25°C to 80°C
TS-1189系列薄型贴片触觉开关
·2.9mm x 2.7mm触觉开关
·高度为0.65mm的超低剖面
·160±50克力选项
·表面安装设计
规格
电气寿命：500000次循环-160gf
触点额定值：50mA
接触电阻：200MΩ初始最大值。
绝缘电阻：100Vdc时最小为50MΩ
介电强度：250Vac
力：160gf±50gf；
行程：0.1mm
工作温度：-20°C至70°C
储存温度：-25°C至80°C
