TM-1502

TM-1502 Series Tri-direction Scan Switch

· One touch, 3 way switching
· Superior tactile feel
· Rotation of actuator closes two individual contacts
· Ultra-low profile housing
· Normally open contacts
· Custom actuator by request
· RoHS compliant and compatible


Electrical
1.MAXIMUM POWER: 1.0 VA
2.MAXIMUM VOLTAGE: 32 V
3.MAXIMUM CURRENT DC: 50 mA
4.MINIMUM CURRENT DC: 1 mA
5.LOW LEVEL USE: 20mV–1mA
6.DIELECTRIC STRENGTH: 250 Vrms
7.CONTACT RESISTANCE: ≤ 300 mΩ (select) ≤ 1Ω (left & right)
8.INSULATION RESISTANCE (100 VDC): 109 Ω
9.BOUNCE TIME: < 10 ms
TM-1502系列三向扫描开关
·一触式，三路切换
·卓越的触觉
·执行器旋转关闭两个单独的触点
·超低剖面外壳
·常开触点
·按要求定制执行机构
·RoHS兼容
电气
1.最大功率：1.0 VA
2.最大电压：32V
3.最大直流电流：50 mA
4.最小电流dc:1 mA
5.低电平使用：20mV–1mA
6.介电强度：250 Vrms
7.接触电阻：≤300 MΩ（选择）≤1Ω（左右）
8.绝缘电阻（100 Vdc）：109Ω
9.弹跳时间：<10 ms

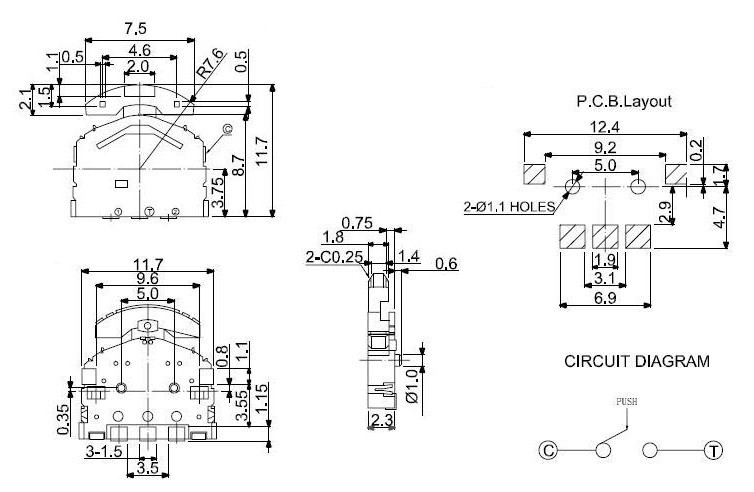

                                                                            TM-1502

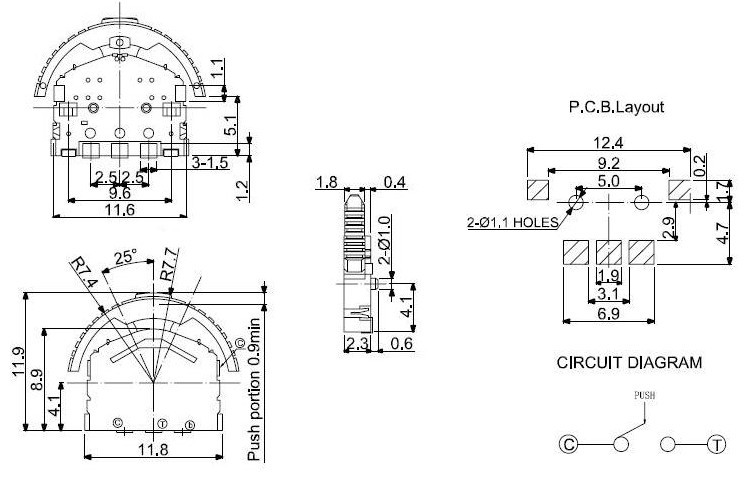

                                                                                TM-1502A
