2030

2030 Series Detector switch

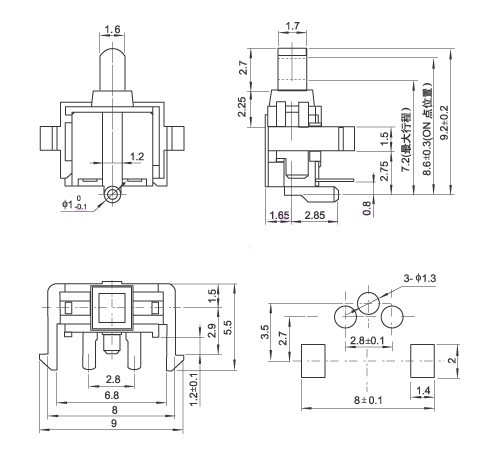

·8.0mm x .29mm Detector switch
·3.2mm thickness
·Mounting Type:DIP

Typical Specifications

1.Rating : DC 12V 50mA
2.Operating Force : 40gf Max
3.Contact Resistance : 1з max
4.Life : 50,000 Cycles Min
2030系列探测器开关
·8.0mm x.29mm探测器开关
·3.2毫米厚
·安装形式：DIP
典型规格
1.额定值：直流12V 50mA
2.操作力：最大40gf
3.接触电阻：最大
4.寿命：至少50000次循环
